- GIGABYTE
Цена
€123 49 / 241 53 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/B650-EAGLE#kf
Graphics
Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3
** Support for native HDMI 2.1 TMDS compatible ports
CPU's supported
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset
AMD B650
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot
2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used
1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
CPU+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x serial port header j
1 x Clear CMOS jumper
1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Lan
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B650-EAGLE#kf |
| Chipset | AMD B650 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Memory type | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Rear panel I/O | iTE® I/O Controller Chip |
| Rear panel I/O | CPU: |
| Rear panel I/O | Chipset: |
| Rear panel I/O | 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| Rear panel I/O | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support |
| Rear panel I/O | CPU+USB 2.0 Hub: |
| Rear panel I/O | 4 x USB 2.0/1.1 ports on the back panel |
| Rear panel I/O | 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| Rear panel I/O | 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| Rear panel I/O | 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Rear panel I/O | Chipset+USB 2.0 Hub: |
| Rear panel I/O | 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| Expansion Slots | AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Expansion Slots | 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1 |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU |
| Expansion Slots | AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot |
| Expansion Slots | * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used |
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Graphics | * Support for DisplayPort 1.4 version |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3 |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | iTE® I/O Controller Chip |
| I/O | CPU: |
| I/O | Chipset: |
| I/O | 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| I/O | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support |
| I/O | CPU+USB 2.0 Hub: |
| I/O | 4 x USB 2.0/1.1 ports on the back panel |
| I/O | 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| I/O | 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| I/O | 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| I/O | Chipset+USB 2.0 Hub: |
| I/O | 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Storage | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs |
| Storage | AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs |
| Storage | AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs |
| Storage | AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs |
| Storage | AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 3 x M.2 Socket 3 connectors |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 2 x system fan headers |
| Connectors | 1 x RGB LED strip header |
| Connectors | 1 x PS/2 keyboard/mouse port |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 1 support |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 3 x USB 2.0/1.1 headers |
| Connectors | 1 x serial port header j |
| Connectors | 1 x DisplayPort |
| Connectors | 1 x HDMI port |
| Connectors | 2 x SMA antenna connectors (2T2R) |
| Connectors | 2 x USB 3.2 Gen 2 Type-A ports (red) |
| Connectors | 6 x USB 2.0/1.1 ports |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
| Атрибут | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD B650 |
| Тип памет | DDR5 |
| Слотове за памет (count) | 2 |
| Максимална памет (GB) | 128 |
| M.2 слотове (count) | 2 |
| SATA портове (count) | 4 |
| PCIe x16 слотове (count) | 2 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове (count) | 1 |
| RGB подсветка | Не |
| Тегло | 0.00кг |

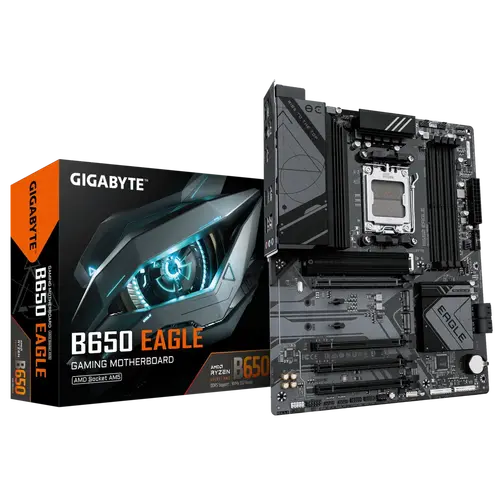

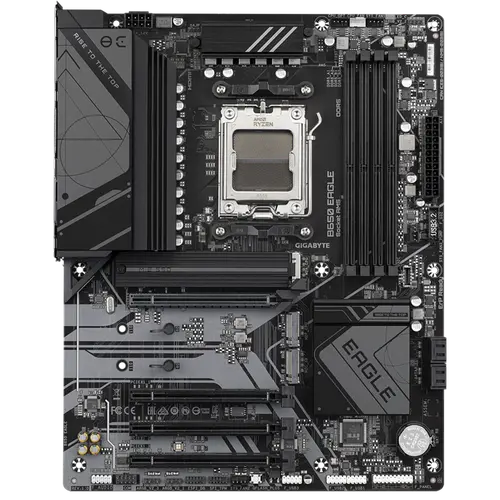

Дънна платка GIGABYTE GB B650 EAGLE – AM5, DDR5, високопроизводителна
GIGABYTE B650 EAGLE е идеалната основа за вашия процесор AMD Ryzen 7000/8000 серия. С поддръжка на DDR5 памет и PCIe 4.0/5.0, тази ATX дънна платка предлага баланс между модерни функции и надеждна производителност за игри и работа.
Ключови предимства
- AM5 сокет — Извлечете максимума от най-новите Ryzen процесори с поддръжка на PCIe 5.0 за графика и съхранение.
- DDR5 памет — По-бърз трансфер на данни и подобрена отзивчивост на системата с двуканален DDR5.
- Мълниеносно съхранение — Два M.2 слота (един PCIe 5.0) осигуряват свръхбързи NVMe скорости и съвместимост с бъдещето.
- Стабилно захранване — Солидна VRM архитектура за надеждна мощност дори при натоварване.
- 2.5GbE LAN — Насладете се на плавни онлайн игри и бързи трансфери с подобрен мрежов капацитет.
Технически спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD B650 |
| Тип памет | DDR5 |
| Слотове за памет | 2 (двуканален режим) |
| Максимална памет | 128 GB |
| M.2 слотове | 2 (1 x PCIe 5.0, 1 x PCIe 4.0) |
| SATA портове | 4 |
| PCIe x16 слотове | 2 (1 x PCIe 4.0, 1 x PCIe 4.0 x4) |
| LAN | 2.5 GbE |
| USB-C (отзад) | 1 |
| RGB хедър | Да (адресируем) |
Какво има в кутията
- Дънна платка GIGABYTE B650 EAGLE
- Ръководство за потребителя
- I/O щит
- 2 x SATA кабела
- M.2 винтов комплект
- DVD с драйвери (по избор)
