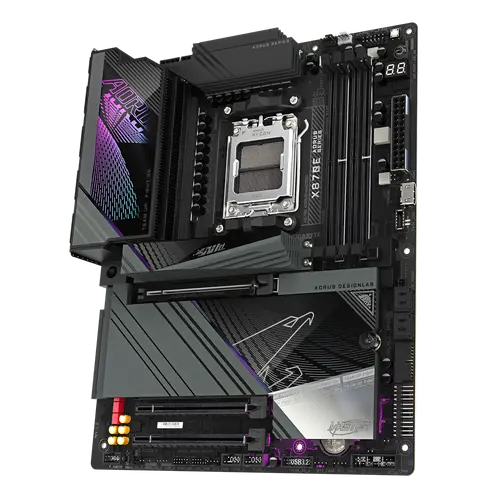

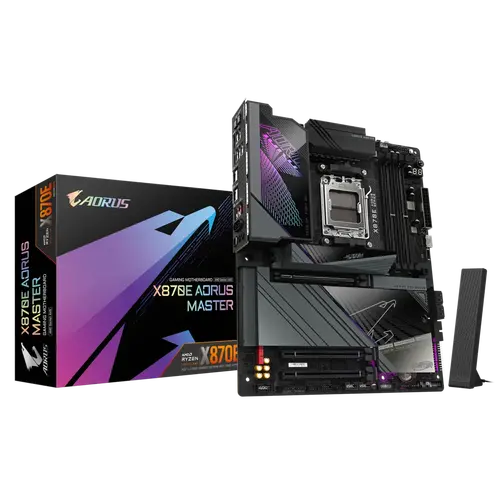

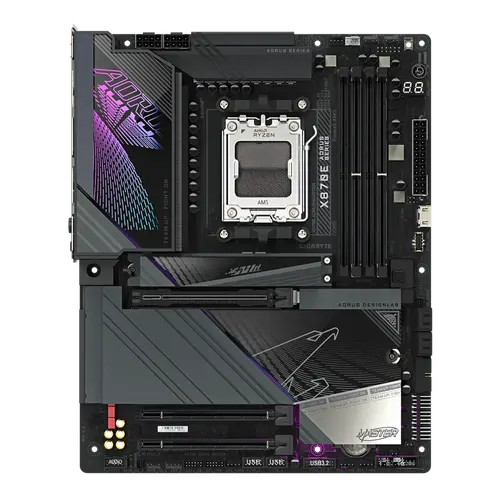

Дънна платка, GIGABYTE GB X870E AORUS MASTER /AM5

  • GIGABYTE
Дънна платка, GIGABYTE GB X870E AORUS MASTER /AM5
Цена
€497 03 / 972 11 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

Безплатна Доставка

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
 Добави в Количката
Удължи гаранцията си
+1 година: + 65€
+2 години: + 95€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Улеснено Поръчване - като въведете само телефон и име:
Съгласен съм с Общите условия
Ще Ви потърсим в рамките на работния ден. Внимание: При грешен телефонен номер, нямаме начин да се свържем с Вас.
CreditCredit
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/X870E-AORUS-MASTER#kf
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.
(Graphics specifications may vary depending on CPU support.)
CPU's supported
AMD Socket AM5, support for
-AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD X870E
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
*The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC and non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Rear panel I/O
CPU+ASMedia USB4® controller
- 2 x USB4® USB Type-C® ports on the back panel
CPU
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Connectors
iTE® I/O Controller Chip
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
(Note) Actual support may vary by CPU.
Back Panel Connectors: 1 x Q-Flash Plus button
1 x Clear CMOS button
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPorts (Note))
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Warranty
36 Months
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlhttps://www.gigabyte.com/Motherboard/X870E-AORUS-MASTER#kf
ChipsetAMD X870E
OSSupport for Windows 11 64-bit
Warranty36 Months
CPU's supported(Go to GIGABYTE's website for the latest CPU support list.)
CPU's supportedAMD Ryzen™ 8000 Series Processors/
CPU's supportedAMD Ryzen™ 7000 Series Processors
CPU's supportedAMD Socket AM5, support for
CPU's supported-AMD Ryzen™ 9000 Series Processors/
Memory typeDual channel memory architecture
Memory typeSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory type(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Memory typeSupport for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Memory typeSupport for ECC and non-ECC Un-buffered DIMM memory modules
Form Factor30.5cm x 24.4cm
Form FactorATX Form Factor
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioSupport for S/PDIF Out
AudioRealtek® ALC1220 CODEC
Audio* The back panel line out jack supports DSD audio.
AudioSupport for DTS:X® Ultra
Rear panel I/OCPU
Rear panel I/OChipset
Rear panel I/OCPU+ASMedia USB4® controller
Rear panel I/O- 2 x USB4® USB Type-C® ports on the back panel
Rear panel I/O- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
Rear panel I/O- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Rear panel I/O- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub
Rear panel I/O- 4 x USB 3.2 Gen 1 ports on the back panel
Rear panel I/O- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Rear panel I/O- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
LANRealtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset
Expansion SlotsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion SlotsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
Expansion Slots-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Expansion Slots* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
Expansion Slots*The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
Wireless- BLUETOOTH 5.3
Wireless(Actual data rate may vary depending on environment and equipment.)
Wireless- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Wireless* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
Wireless** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
WirelessQualcomm® Wi-Fi 7 QCNCM865
Wireless- Support for 11be 320MHz wireless standard
Graphics* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
Graphics(Graphics specifications may vary depending on CPU support.)
Graphics* Support for DisplayPort 1.4 version and HDR.
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support
Graphics- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller
Graphics- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
Graphics* Support for HDMI 1.4 version.
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
Features* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
FeaturesSupport for Smart Backup
BIOS1 x 256 Mbit flash
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/OCPU
I/OChipset
I/OCPU+ASMedia USB4® controller
I/O- 2 x USB4® USB Type-C® ports on the back panel
I/O- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
I/O- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
I/O- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub
I/O- 4 x USB 3.2 Gen 1 ports on the back panel
I/O- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
I/O- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
StorageRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage4 x SATA 6Gb/s connectors
Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
Storage-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
Storage-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
Storage-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
Storage* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
Storage1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
Connectors1 x 24-pin ATX main power connector
Connectors2 x 8-pin ATX 12V power connectors
Connectors1 x CPU fan header
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x reset button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
Connectors1 x HDMI port (Note)
Connectors4 x USB 3.2 Gen 1 ports
Connectors1 x CPU fan/water cooling pump header
Connectors4 x System fan headers
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
ConnectorsiTE® I/O Controller Chip
ConnectorsBack Panel Connectors: 1 x Q-Flash Plus button
Connectors4 x M.2 Socket 3 connectors
Connectors2 x USB 3.2 Gen 1 headers
Connectors1 x power button
Connectors1 x Clear CMOS button
Connectors1 x noise detection header
Connectors2 x temperature sensor headers
ConnectorsVoltage Measurement Points
Connectors(Note) Actual support may vary by CPU.
Connectors2 x system fan/water cooling pump headers
Connectors4 x addressable RGB Gen2 LED strip headers
Connectors2 x USB4® USB Type-C® ports (DisplayPorts (Note))
Connectors4 x USB 3.2 Gen 2 Type-A ports (red)
Connectors2 x
Тегло0.00кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетAM5
Форм факторE-ATX
ЧипсетAMD X870E
Тип паметDDR5
Слотове за памет (count)4
Максимална памет (GB)192
M.2 слотове (count)5
SATA портове (count)4
PCIe x16 слотове (count)2
Вграден Wi-FiWi-Fi 7
Скорост на LAN2.5 Gbps
USB-C портове (count)2
RGB подсветкаДа
Тегло0.00кг

Дънна платка GIGABYTE X870E AORUS MASTER (AM5)

Извлечете максимума от процесорите AMD Ryzen 9000 с дънната платка GIGABYTE X870E AORUS MASTER. Създадена за ентусиасти и геймъри, тя предлага екстремна производителност, свързаност от ново поколение и стабилно захранване за овърклок.

Ключови Предимства

  • Чипсет AMD X870E — Двоен чипсет за максимален брой PCIe 5.0 линии и разширена свързаност.
  • Поддръжка на DDR5 — До 192 GB DDR5 памет с EXPO овърклок за светкавични скорости.
  • Готовност за PCIe 5.0 — Един PCIe 5.0 x16 слот и множество M.2 слотове за ултрабързи GPU и SSD.
  • Wi-Fi 7 и 2.5GbE LAN — Най-съвременна безжична и жична мрежа за безпроблемен гейминг и стрийминг.
  • Разширено охлаждане — Радиатори с ребра и M.2 Thermal Guard осигуряват стабилна работа при натоварване.

Технически Спецификации

СпецификацияСтойност
СокетAM5
Форм факторE-ATX
ЧипсетAMD X870E
Тип паметDDR5
Слотове за памет4
Максимална памет192 GB
M.2 слотове5
SATA портове4
PCIe x16 слотове2
Вграден Wi-FiWi-Fi 7
Скорост на LAN2.5 Gbps
USB-C портове2
RGB подсветкаДа

Какво има в кутията

  • Дънна платка GIGABYTE X870E AORUS MASTER
  • Ръководство за потребителя
  • DVD с драйвери
  • SATA кабели (x4)
  • Wi-Fi антена
  • Заден панел I/O
  • M.2 винтове и дистанционери
  • RGB удължителен кабел
  • G-Connector
SKU: X870E AORUS MASTER 1.0 © 2026 Xtreme.bg
Amazon
Huawei

Запишете се за нашият Бюлетин

Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.

Ако имате въпроси свържете се с нас!

info@xtreme.bg

+359 886 177 222

Информация

Потребител

Методи за Плащане

  • Наложен Платеж
  • Кредитна/Дебитна Карта
    MastercardVisaGoogle PayApple Pay
  • Банков Превод
  • На изплащане ПБ Лични Финанси
Copyright © 2023 Xtreme.bg - Всички права запазени. Онлайн магазин вървящ на XCore
Затвори
